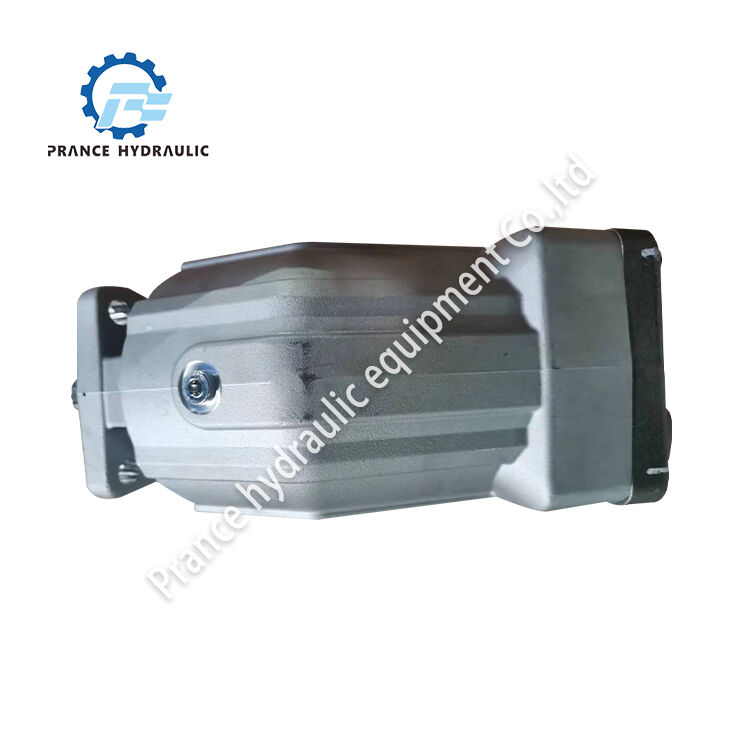

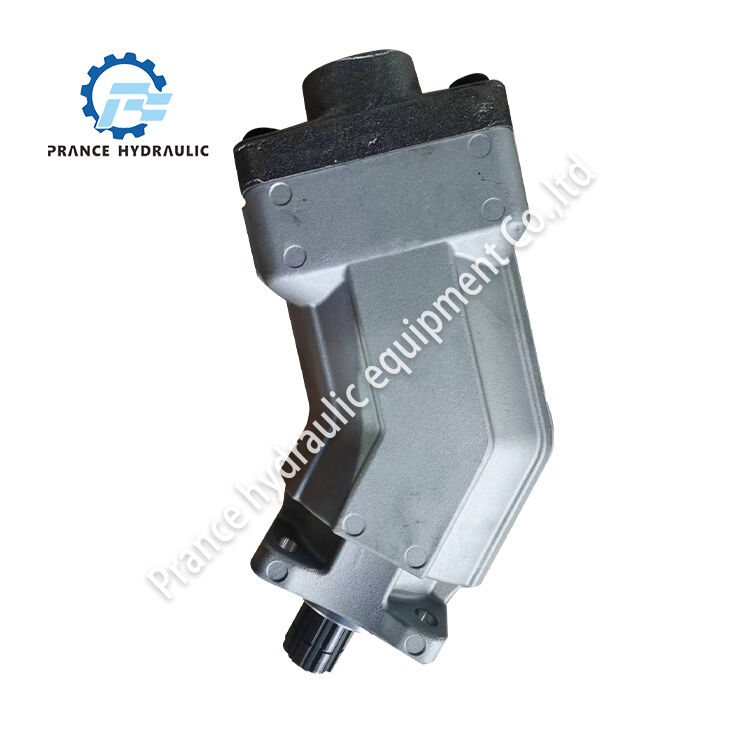

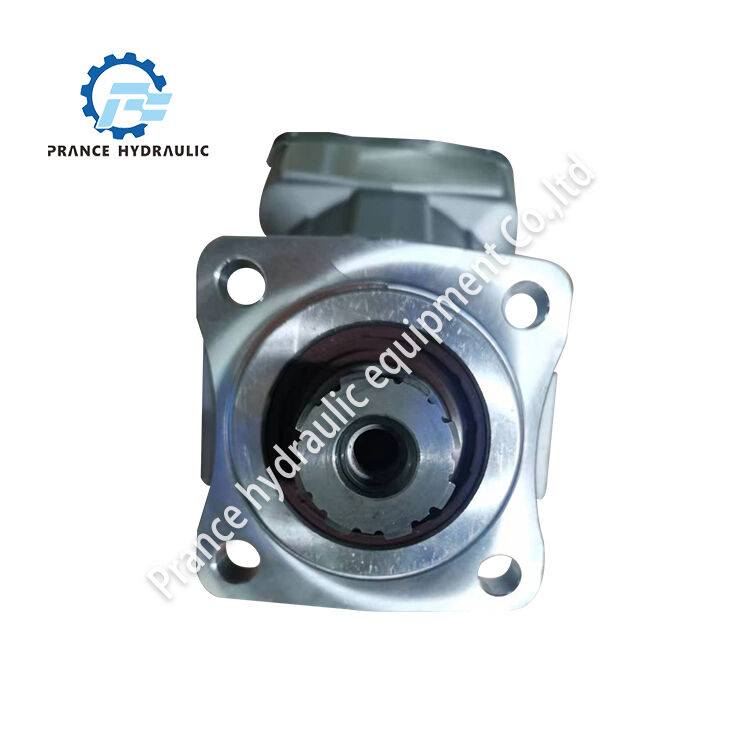

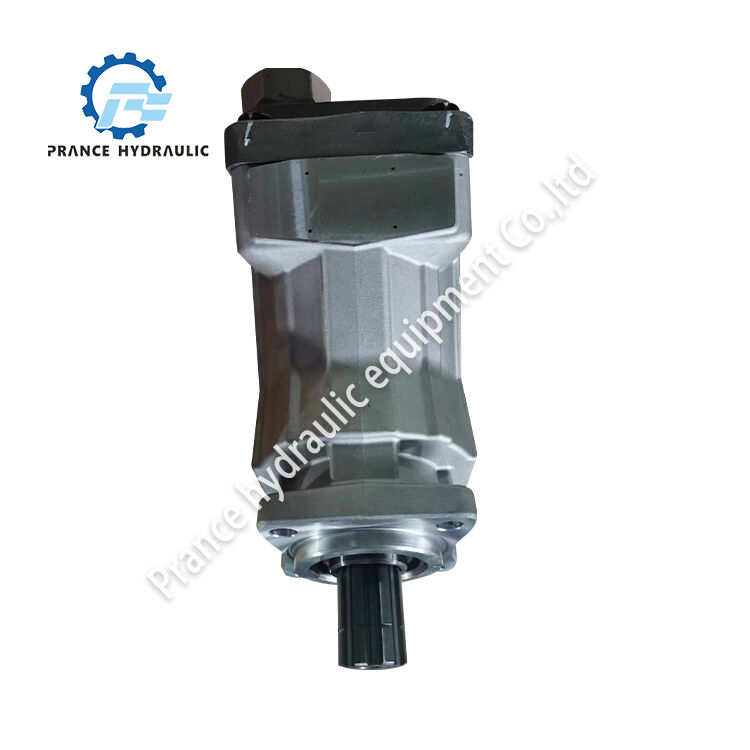

Fixed Displacement Piston pump A17FO
Highlights and Innovations
1.Bent Axis Design
2.Optimized for Mobile Drives
3.Compact and Lightweight Construction
4.Direct Power Take-Off Installation
5.Excellent Suction Characteristics
6.High Overall Efficiency
- Feature
- Model code
- Related Products
Feature:
▶ Flange and shaft designed for direct mounting on the
power take-off of commercial vehicles
▶ Weight-optimized thanks to diecast aluminum housing.
▶ No case drain line necessary
▶ Reduced noise
▶ Straightforward adjustment of direction of drive
▶ Excellent suction performance
▶ High total efficiency
▶ Long service life
| Product | A17FO |
| Application |
1.Commercial Vehicles; 2.Truck; 3.Heavy Goods Vehicles; 4.Construction Equipment; 5.Dump Truck |
| Displacement/Size | 23, 32, 45, 63, 80, 107, and 125 cm³/rev |
| Control types | NA |
| Max pressure | 350 Bars |
| Max Speed | 3000rpm |
| Max Flow | 235L |
| Material | Housing is aluminum and rear cover is Cast Iron |
| Guarantee Period | 1 Year |
| Customization or not | NO |
